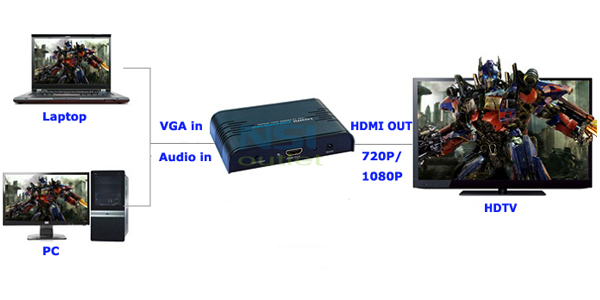

This converter is designed to take video and audio signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions up to 1080p. Plug and play, no software is needed. It is quite suitable to connect the VGA video output of your computer or media server and integrating it into a new digital HDMI home theater system. So you can enjoy the movies, hip-hop dance shows and share your birthday or wedding video with your family and your friends on a large screen. Wow!! It’s so interesting. Just take it and enjoy your time.

Product Features

• Up-scale VGA to HDMI 720p or 1080p.
• Recommended input resolution: 1024*768@60Hz.
• Supports VGA input: 640*480 @ 60/75Hz, 800*600 @ 60/75Hz, 1024*768 @ 60Hz, 1280*720 @ 60Hz, 1280*800 @ 60Hz, 1280*960 @ 60Hz, 1360*768 @ 60Hz, 1440*900 @ 60Hz, 1400*1050 @ 60Hz, 1680*1050 @ 60Hz, 1920*1080 @ 60Hz.
• Supports HDMI output: 720p/60Hz, 1080p/60Hz.
• Compliant with HDMI 1.3 standard.
• Auto-store setting of output resolution.
• Power/signal LED indicators.
• Easy installation and operation.

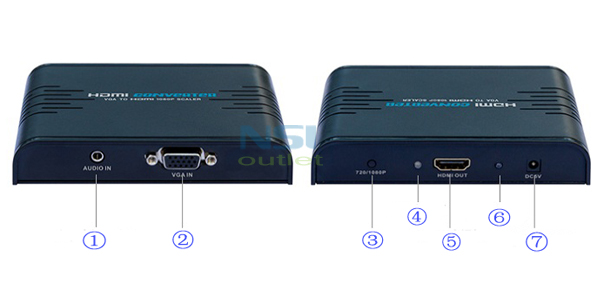

Interfaces

• (1) 3.5mmaudio input.
• (2) VGA input.
• (3) select output resolution at 720p or 1080p.
• (4) Output resolution indicator: Red(720p/60Hz), Green(1080p/60Hz).
• (5) HDMI output.
• (6) Power indicator.
• (7) power input.

Specification

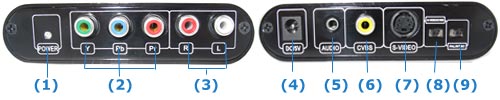

 Interfaces

• One (1) LED Indication.
• One (1) YPbPr input.
• One (1) Audio R/L inputs.
• One (1) DC 5V power supply input.
• One (1) Audio output.
• One (1) Composite Video output.
• One (1) S-Video output.
• One (1) S-video/CVBS switch.
• One (1) NTSC/PAL switch.

 Package Includes

• 1 x VGA+3.5mm to HDMI Converter
• 1 x Power Supply.
• 1 x User Manual.
